SMAC3 Intelligent Feeding Line
SMAC3 Intelligent Feeding Line Coil Width (mm): 70-500 Coil Thickness (mm): 1.0-3.0 Coll I.D. (mm): Φ508 Coil O.D. (mm): Φ800-Φ1500 Max Coil Weight (kg): 8000 Feeding Accuracy (mm/m): ±0.20mm/m Operating Air (Mpa): 0.5 Expansion Range (mm): Φ480-Φ520 Email Inquire Linkedin Facebook Youtube Introduction The feeding line is mainly for progressive die automated production. There are […]
What Is the Difference Between the Three Types of Production Line

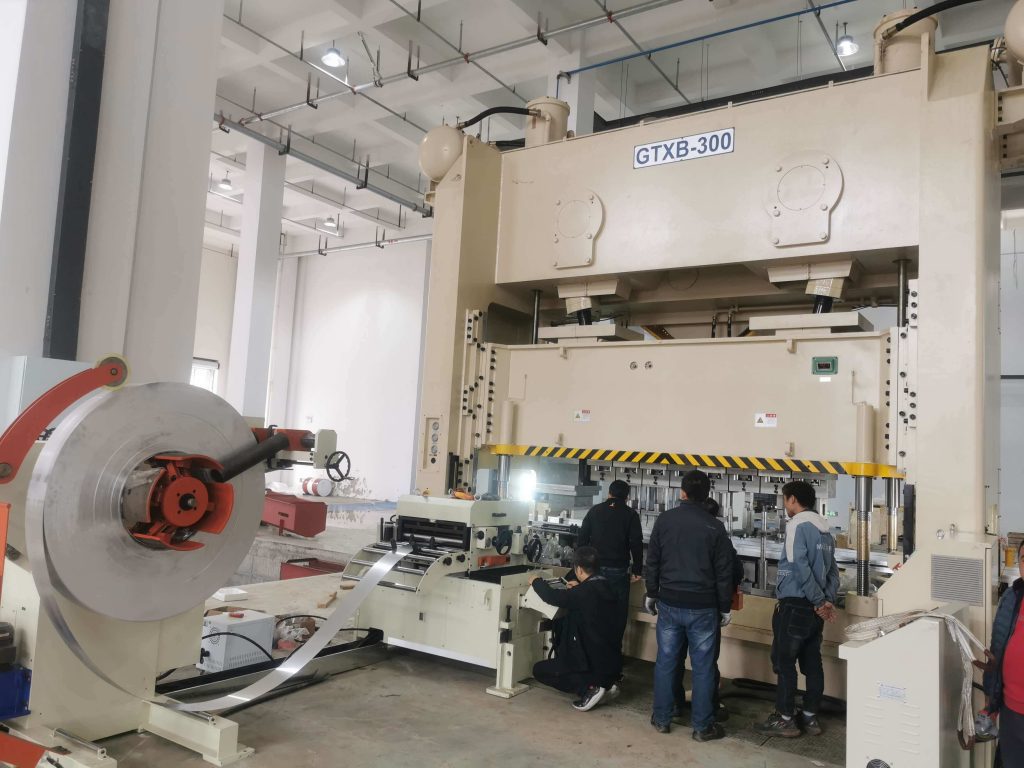

Progressive Die Feeding Line The progressive die feeding line is a specialized equipment used for metal coil stamping or blanking, featuring three major functions: uncoiling, leveling, and feeding. It can automatically complete the loading, uncoiling, guiding, leveling, and feeding of coil materials. It is durable, easy to operate, and space-saving. Features 1. High production speed, typically […]
Understanding the Functions of Every Part in the Compound 3-Axis Transfer Stamping Line
The compound 3-axis transfer stamping line is a multifunctional composite production line specifically designed to meet customer needs, integrating three-in-one progressive stamping and 3-axis multi-station stamping. It consists of NC straightener feeder, loading trolley, destacking manipulator, magnetic belt conveyor, 3-axis transfer, transfer bar, and exit conveyor. This production line integrates advanced automation control technology with an intelligent operating system, […]
Destacker 3-Axis Transfer Stamping Line
Destacker 3-Axis Transfer Stamping Line Category: Destacker and Transfer/Blanking Line Sheet Thickness: 0.5-3.2mm Max Sheet Width: 1800*1200mm Min Sheet Width: 400*150mm Production Material: Steel/Aluminum Feeding Stroke(X-Axis): 0-1500mm Clamping Stroke(Y-Axis): 0-300mm Lifting Stroke(Z-Axis): 0-300mm Email Inquire Linkedin Facebook Youtube Introduction The destacker 3-axis transfer stamping line integrates high-precision adaptive positioning technology. It automatically identifies and memorizes […]
Metal Coil Slitting Production Line
Metal Coil Slitting Production Line Category: Solution/Blanking Line Brand: RUIHUI Coil Weight: MAX 25T Coil Width: MAX 2000mm Coil Thickness: 0.3~3 mm Machine Speed: 200m/min Width Accuracy: 0.05mm~0.15mm Average Capacity: 50000T/Y Email Inquire Linkedin Facebook Youtube Introduction The metal coil slitting production line processes metal strips into narrower coils through precision slitting and rewinding. Its […]
Compound 3-Axis Transfer Stamping Line
Compound 3-Axis Transfer Stamping Line Category: Transfer/Blanking Line Brand: RUIHUI Matching Press Tonnage: 1000T-3500T Coil Width(mm): 200-1600mm Coil Thickness(mm): 0.6-6.0mm Line Speed(m/min): 30m/min Tensile Strength: MAX 980MPa Shearing TAKT: 25SPM Email Inquire Linkedin Facebook Youtube Introduction The compound 3-axis transfer stamping line is a powerful assistant for stamping automation. It realizes the fully automated production […]
Fully Automatic Destacker 3-Axis Transfer Stamping Line
Fully Automatic Destacker 3-Axis Transfer Stamping Line Category: Destacker and Transfer/Blanking Line Brand: RUIHUI Matching Press Tonnage: 1000T-3500T Sheet Thickness(mm): 0.5-3.2mm Max Sheet Width(mm):1800*1200mm Feeding Stroke: 0-1500mm Clamping Stroke: 0-350mm Lifting Stroke: 0-300mm Email Inquire Linkedin Facebook Youtube Introduction Fully Automatic Destacker 3-Axis Transfer Stamping Line is characterized by a high degree of automation, flexibility, […]
Introduction to Each Module of Box Furnace Hot Forming Automatic Stamping Line
As people’s demand for the quality of the living environment is getting higher and higher, the country is also imposing higher standards for environmental protection and energy efficiency in the automotive industry. Lightweight vehicle body has been an important issue to be implemented by each automobile manufacturer. The application of ultra-high-strength steel plate materials is […]
Introduction to the Structure of Dual-Station Destacking System and 3-Axis Transfer
The dual-station destacking 3-axis transfer can handle the destacking and conveying of both rectangular and irregular-shaped material sheets simultaneously. This design also facilitates the mixed use of steel and aluminum sheets during the destacking and conveying process, and additionally supports the handling of tail materials during coil production. Stacker Trolley The material stacks are arranged […]
