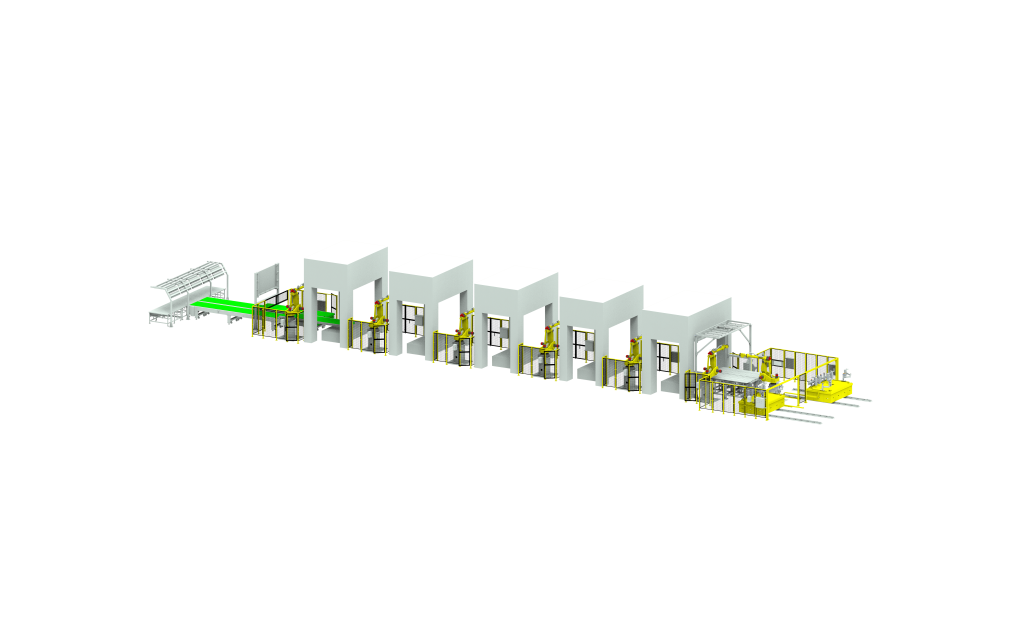

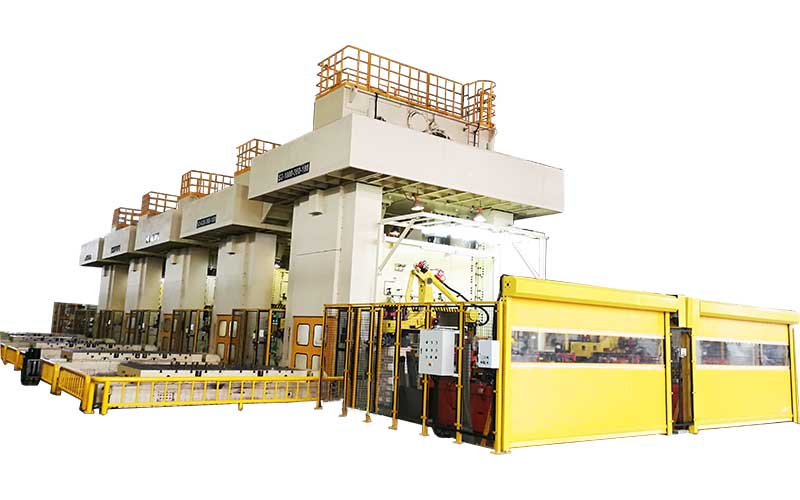

Robot system Tandem line is a series production line composed of multiple robots supporting robots; It can be equipped with all kinds of brand robots and presses to form an integrated press line; The line head can be equipped with cleaning and oiling equipment; Optical, mechanical, and gravity centering methods are used to align the material in the middle;

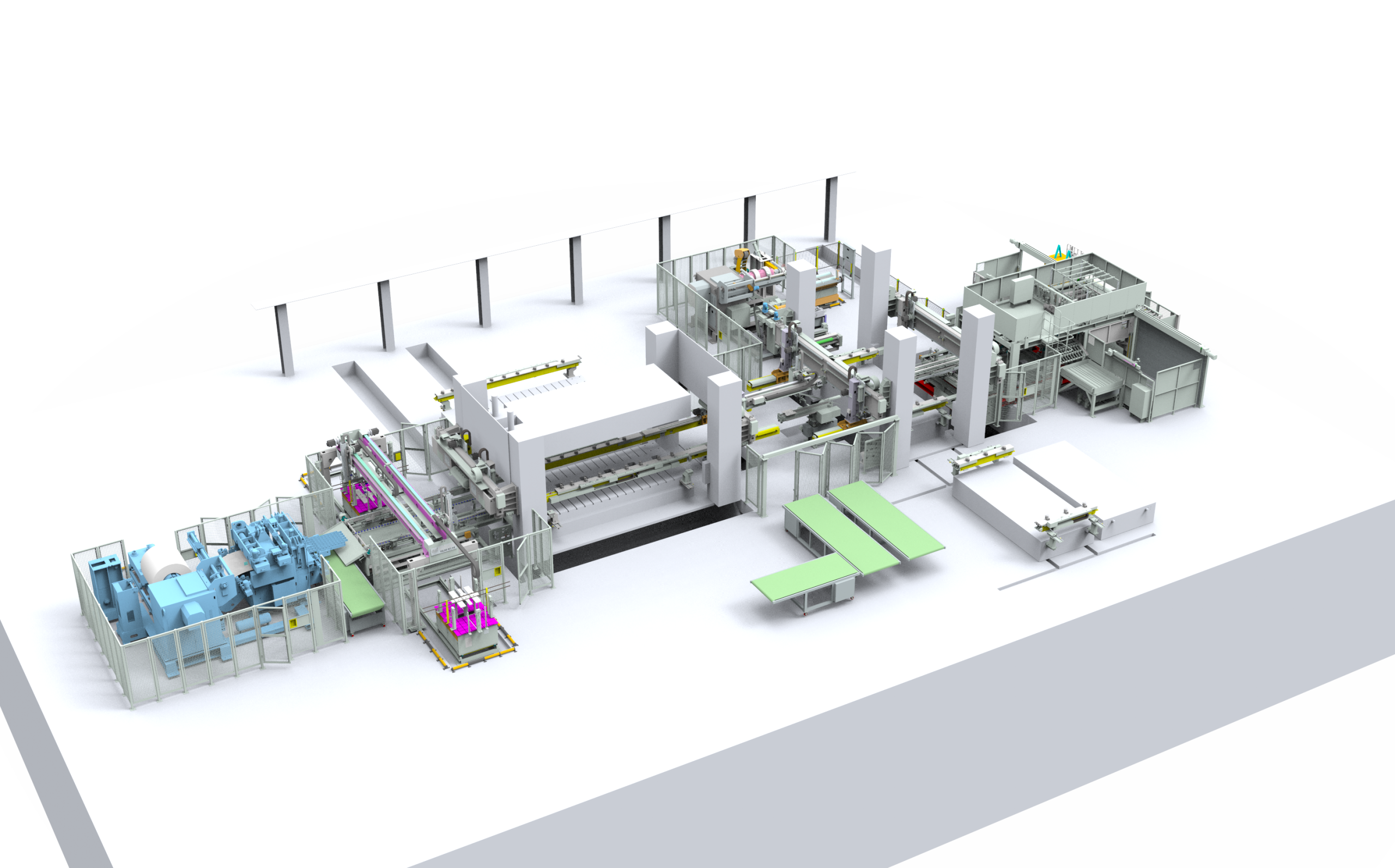

The robotic stamping automation production line includes the following parts: stacking trolley, magnetic splitting device, destacking robot, electronic control system, destacking device, transition belt, washing machine, programmable sheet lubricating machine, centering station, press, Unloading robot, discharging belt conveyor, inspection table guard, lighting system and safety protection system.
The Robot system Tandem Line is suitable for configuration of 1000T~3200T four-point multi-station press; The production beat is basically between spm15~30; The length of the press table is more than 6000mm.
1. The robot adopts world-renowned mainstream brands such as Japan’s Fanuc, Switzerland’s ABB, and Germany’s KUKA.
2. Adopt a multi-machine series synergistic press to connect production
3. High automation integration, using a well-known German control system to ensure stable production of the entire line
4. Adopt German Cognex visual alignment system + German Roland detector to escort the safe production of the whole line
5. Strong logic control of the whole line, with man-machine collaborative production capacity
6. Provide a complete solution for large outer and inner panels
7. Can be equipped with integrated oiling and cleaning functions
8. Can meet the normal production needs of one mold and two pieces
9. Liberate labor and improve production efficiency
| Model | 2400T Stamping Line | 2250T Stamping Line | 2000T Stamping Line | 1600T Stamping Line | 1300T Stamping Line | 1000T Stamping Line | ||||||
| Quantity | 1 | 4 | 1 | 3 | 1 | 3 | 1 | 3 | 1 | 3 | 1 | 3 |
| Slide Stroke | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 900 | 800 | 800 | 800 |
| MB size | 2500×5000 | 2500×4600 | 2500×4600 | 2500×4600 | 2500×4000 | 2500×4000 | ||||||
| Die cushion Capacity | 4000 | – | 4000 | – | 4000 | – | 3000 | – | 2000 | – | 2000 | – |
| Die cushion Stroke | 350 | – | 350 | – | 350 | – | 300 | – | 250 | – | 250 | – |
