Gravity Non-Deceleration Stacking System

Category: Auxiliary Equipment

Brand: RUIHUI

Stack Switching: Without Stopping

Stack Width: 300-1800mm

Stack Length: 150-2000mm

Stack Thickness: 0.5-3.2mm

Introduction

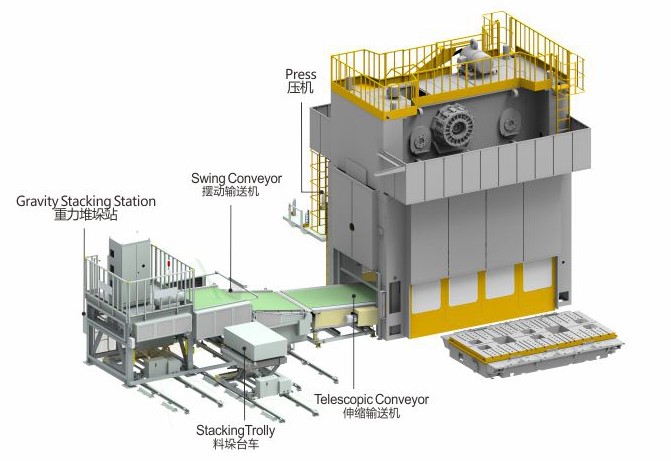

The gravity non-deceleration stacking system utilizes the principle of gravity to achieve efficient and stable material stacking. After processing by the press, blanks are transferred to the gravity stacking station via a swing conveyor and a telescopic conveyor. During this process, the sheet materials are positioned by tapping to ensure their accurate placement. The use of gravity allows the blanks to naturally stack, making this method particularly suitable for inner panel blank stacking. It ensures neat and uniform stack formation.

Features and Advantages

1. By switching conveyors, material sheets are distributed to two stacking machines, enabling uninterrupted operation during stack switching

2. Two lifting-type stacking trolleys elevate the material stacks, working in coordination with three sets of tapping units to ensure neat stacking.

3. The system supports fast stacking of most irregular and rectangular sheets.

4. It is ideal for high-speed blanking of inner panels, providing an efficient solution for stack formation.

Technical Specifications

Stack Width

300-1800mm

Stack Length

150-2000mm

Stack Thickness

0.5-3.2mm

Stack Switching

Without Stopping

Applications

High Precision Electronic Parts

Household Appliances

Automobile Industry

Aerospace industry

Package

1. Strong water resit bottom in plywood.

2. Corner protect by foam and fixed by a protective film.

3. All covered by a strong and hard protective film.

4. Inside steel frame protector.

5. Plywood packing and steel strip outside fixed the box.

6. Finishing packing by normal container or frame container.

Pre-Sale Service for Automation Machine from RUIHUI

1. Equipment model selection, provide the technical parameters of the relevant equipment.

2. Progressing Solution Design: According to the customer’s product processing requirement, we can design a unique solution that supports higher manufacturing efficiency and better processing quality for the customer.

3. Customized Machine Design: According to the customer’s application, we may revise our machine according to the customer’s convenience and high production efficiency.

After-Sale Service for Automation Machine from RUIHUI

1. As a professional Automation machine manufacturer and supplier, RUIHUI will supply the all machine with training video and user’s manual in English for installation, operation, maintenance, and trouble-shooting, and shall give technical guides by remote, such as TeamViewer, E-mail, Telephone, Mobile, Whatsapp, Skype, 24/7 online chat, and so on, when you meet some problems of installation, operation or adjusting.

2. You can come to our factory for training. We will offer professional guidance and direct and effective face-to-face training. Here we have assembled equipment, all sorts of tools, and a testing facility. Training Time: 3~5 days.

3. Our engineer will do a door-to-door instruction training service at your local site. We need your help to deal with the visa formality, prepaid traveling expenses, and accommodation to us during the business trip and service period before their dispatch.

RUIHUI Automation Machine Warranty

As a top Automation Machine brand in the world, RUIHUI promise:

1. 1 year for the whole Ruihui machine free warranty.

2. Long life-time maintenance, the after-sale department will offer 24/7 English online support.

3. We provide machine-related parts service

4. After the warranty period expired, the Ruihui buyer only needs to pay the actual maintenance cost.

5. Certificate support:

Shipping to Around the World

All the machines can be shipped worldwide by sea, air, or express logistics via DHL, FedEx, and UPS. You are welcome to get a free quotation by filling up the form with your name, email, detailed address, product, and requirements, we will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.
