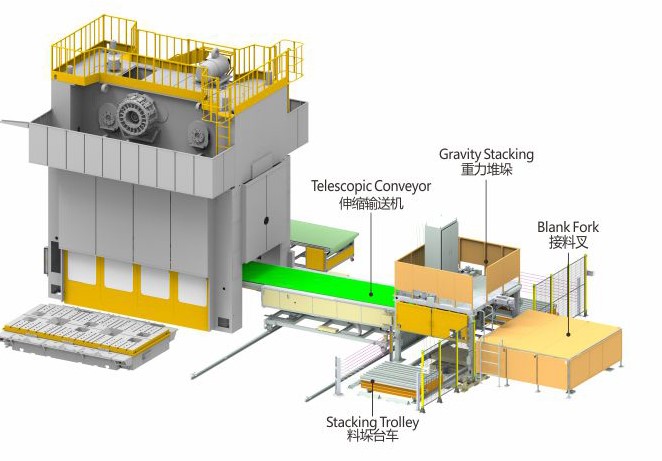

The gravity deceleration stacking system is mainly used to receive individual material sheets conveyed out from the finished product conveyor system, enabling products to be neatly and orderly stacked, thus saving more space for product storage. After the sheets go through the processes of uncoiling, straightening, and stamping/shearing in the blanking die, they are conveyed to the stacking position via a conveyor belt. The gravity deceleration stacking system receives the sheets through a trolley, and a patting device aligns the sheets while stacking them. The patting device operates in three directions: left, right, and rear (adjustable or replaceable based on material shape, with consideration for ease of replacement). The position near the conveyor is considered the front direction and serves as the reference positioning plate. The stack is aligned by the patting device operating in these three directions. Stacking trolleys can be divided into single-station and dual-station types. A blank fork can be installed at the rear to reduce downtime during material changeovers and increase efficiency.
1. Used in conjunction with the uncoiling and blanking line.
2. Patting and positioning in four directions (left, right, front, and rear) for neat stacking.
3. The patting mechanism is driven by cylinders, utilizing reputable Japanese pneumatic components.
4. The patting position is generated electrically, with parameter memory.
5. Automatic switching of material stacks without stopping the line, enabling high-efficiency production.
6. Both irregular and rectangular sheets can be neatly stacked.
Stack Width | 300-1800mm |
Stack Length | 150-2000mm |
Stack Thickness | 0.5-3.2mm |
Stack Switching | Stopping |
1. Strong water resit bottom in plywood.
2. Corner protect by foam and fixed by a protective film.
3. All covered by a strong and hard protective film.
4. Inside steel frame protector.
5. Plywood packing and steel strip outside fixed the box.
6. Finishing packing by normal container or frame container.
1. Equipment model selection, provide the technical parameters of the relevant equipment.
2. Progressing Solution Design: According to the customer’s product processing requirement, we can design a unique solution that supports higher manufacturing efficiency and better processing quality for the customer.
3. Customized Machine Design: According to the customer’s application, we may revise our machine according to the customer’s convenience and high production efficiency.
1. As a professional Automation machine manufacturer and supplier, RUIHUI will supply the all machine with training video and user’s manual in English for installation, operation, maintenance, and trouble-shooting, and shall give technical guides by remote, such as TeamViewer, E-mail, Telephone, Mobile, Whatsapp, Skype, 24/7 online chat, and so on, when you meet some problems of installation, operation or adjusting.
2. You can come to our factory for training. We will offer professional guidance and direct and effective face-to-face training. Here we have assembled equipment, all sorts of tools, and a testing facility. Training Time: 3~5 days.
3. Our engineer will do a door-to-door instruction training service at your local site. We need your help to deal with the visa formality, prepaid traveling expenses, and accommodation to us during the business trip and service period before their dispatch.
As a top Automation Machine brand in the world, RUIHUI promise:
1. 1 year for the whole Ruihui machine free warranty.
2. Long life-time maintenance, the after-sale department will offer 24/7 English online support.
3. We provide machine-related parts service
4. After the warranty period expired, the Ruihui buyer only needs to pay the actual maintenance cost.
5. Certificate support:
All the machines can be shipped worldwide by sea, air, or express logistics via DHL, FedEx, and UPS. You are welcome to get a free quotation by filling up the form with your name, email, detailed address, product, and requirements, we will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.
Small Coil Tipper Machine Model: GCF Category: manipulator Brand: RuiHui Supply Ability: 20 set / Month In Stock! Payment Terms: T/T Email Inquire Linkedin Facebook

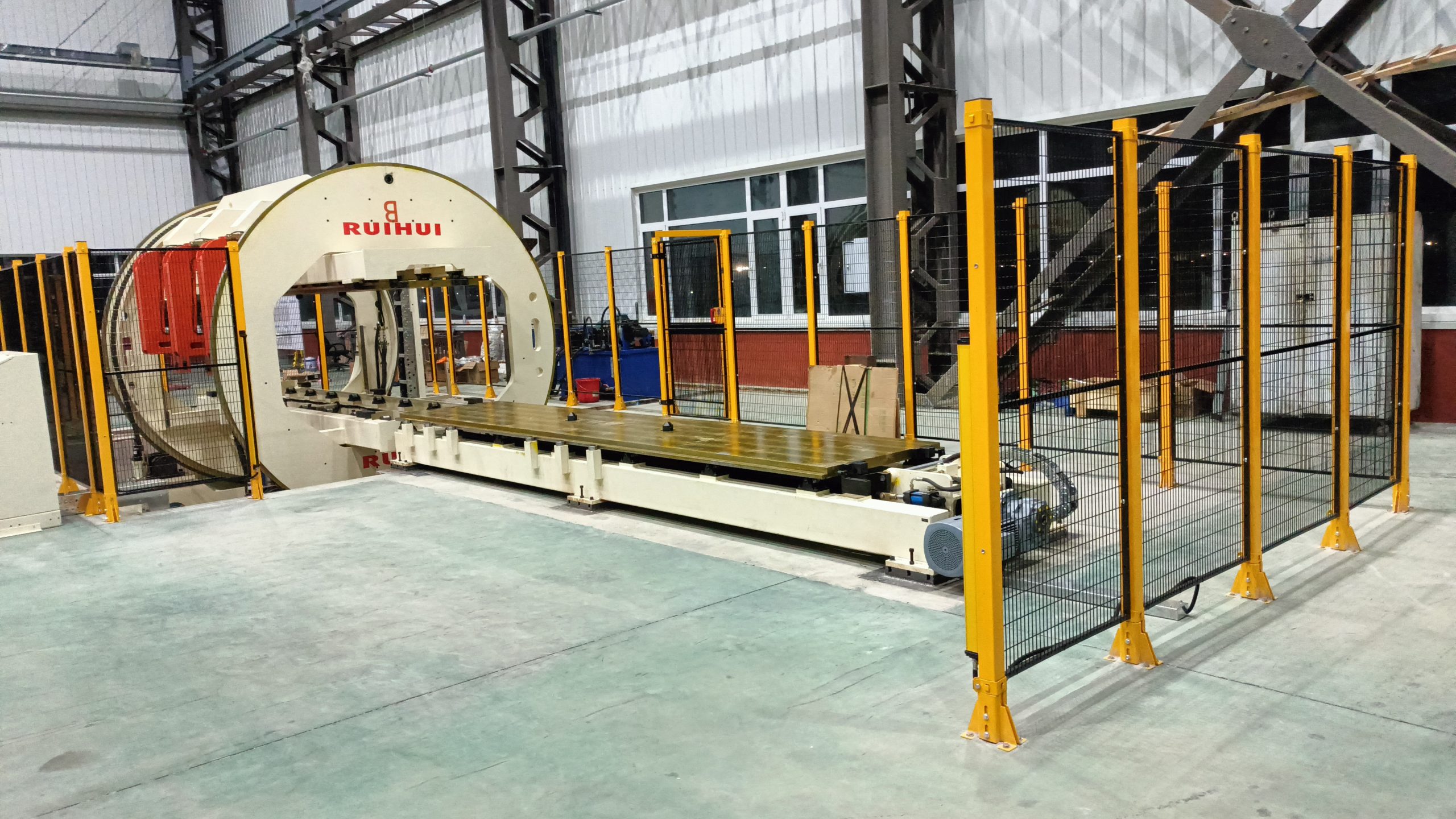

Large Coil Tipper Machine Category: Auxiliary Equipment Brand: RUIHUI Stack Length: 300-4500mm Stack Width: 300-2050mm Stack Height: 750mm（Including Tray） Stack Weight: 20T Rack Thickness: 150mm
