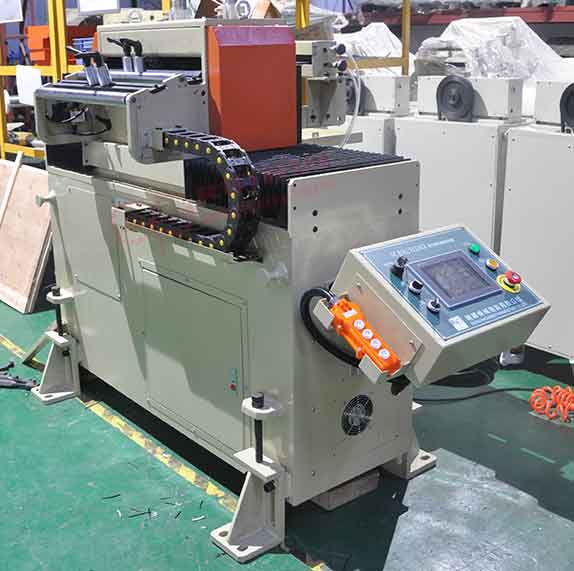

The principle of the wafer stamping production line composed of the yaw feeder is as follows: the coil material is placed on the heavy material rack, and fed into the leveling machine through its uncoiling, and the leveled material enters the feeder, while passing the material forward the conveying device The distance and speed of material advance are controlled, and the transverse translation distance of the material is controlled by the transverse translation drive device. In this way, when the first stamping is completed on the steel strip, the CNC device of the yaw feeder can drive the movable frame to translate laterally through the lateral translation drive device, and then drive the steel strip to translate laterally by an appropriate distance, so that the stamping dies are first arranged in the lateral direction.
The steel strip is punched one by one in the cloth direction. When the stamping of the first row is completed, the lateral translation drive device drives the movable frame and the material to translate laterally by an appropriate distance. After the material advance conveying device drives the material to advance an appropriate distance, the lifting stamping die is then moved to perform the stamping work of the second row. According to the size of the punching hole diameter and the width of the steel strip, by accurately calculating the distance of each lateral translation and/or advancing distance, the gap between the punching holes formed on the steel strip can be minimized, thereby effectively reducing corner waste. , The purpose of reducing the waste of raw materials.
The Zig-zag Feeder Machine Has A Wide Range Of Use
The zig-zag Automatic feeder uses a wide range of materials and is suitable for stamping and feeding of various thin and thick plates. The thickness of the material is generally in the range of 0.3-3.0mm, and the width of the material can reach 1800mm. The diameter of the cutting disc can reach 1000mm, and it is suitable for Blanking processing of a variety of metal materials, such as various steel, copper, aluminum, cold-rolled plates, and various special metals, etc.Z
The Machine Can Reverse And Feed Alternately In Both Directions, With High Work Efficiency And Cost Saving
The NC zig-zag automatic feeder can freely adjust the setting of shifting parameters according to the diameter of the punching disc. Circular and cross-cut stamping can maximize the use of materials and save production costs, and the equipment can automatically calculate the layout angle according to the size of the stamping plate to ensure the greatest possible saving of raw materials.
