Brand: RUIHUI
Material Width: 1650mm/1850mm/2250mm
Material Thickness: 0.6-3.5 (steel)/0.7-4.0(aluminum)
Laser Cutting Machine Quantity: 2/3
Laser Power: 4/6kw
X-Axis stroke: 1500mm/3200mm
Y-Axis stroke: 1700mm/1900mm/2300mm
Working Power Supply:
Three-phase 380V/50Hz

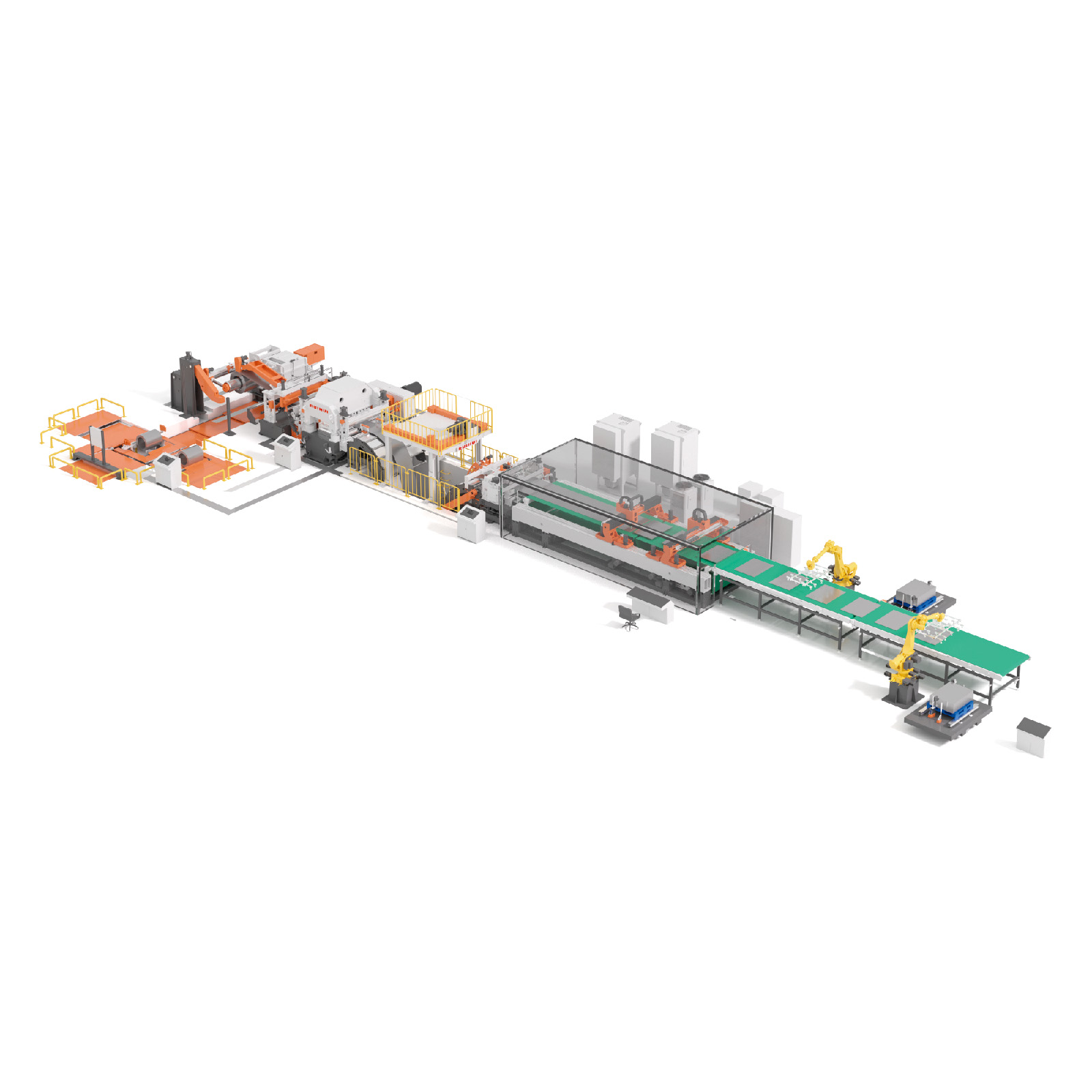

This production line is suitable for the blanking process requirements of automotive plate parts, and has the functions of two trolleys loading, uncoiling, leveling, feeding, laser switching and so on. Adopting advanced control system, it is suitable for efficient processing of many kinds of metal sheets. Equipped with dual-head laser cutting system to enhance cutting efficiency and precision, and integrated with stacking, conveying and other automation equipment to realize fully automated production line operation.
Machine Name | High-Speed Laser Blanking Line | |
Material Type | Cold Rolled Steel Sheet, Galvanized Sheet, High Strength Steel Sheet, Aluminum Alloy Sheet | |
Material Width | 1650mm/1850mm/2250mm | |
Material Thickness | 0.6-3.5(steel)/0.7-4.0(aluminum) | |
Laser Cutting Machine Quantity | 2/3 | |
Laser Power | 4/6kw | |
X-Axis | High Moving Speed | 120m/min |
Stroke | 1500mm/3200mm | |
Moving Positioning Accuracy | ±0.05mm | |
Repetitive Motion Accuracy | ±0.03mm | |
Y-Axis | High Moving Speed | 120m/min |
Stroke | 1700mm/1900mm/2300mm | |
Moving Positioning Accuracy | ±0.05mm | |
Repetitive Motion Accuracy | ±0.03mm | |
Working Power Supply | Three-phase 380V/50Hz | |
1. Strong water resit bottom in plywood.
2. Corner protect by foam and fixed by a protective film.
3. All covered by a strong and hard protective film.
4. Inside steel frame protector.
5. Plywood packing and steel strip outside fixed the box.
6. Finishing packing by normal container or frame container.
1. Equipment model selection, provide the technical parameters of the relevant equipment.
2. Progressing Solution Design: According to the customer’s product processing requirement, we can design a unique solution that supports higher manufacturing efficiency and better processing quality for the customer.
3. Customized Machine Design: According to the customer’s application, we may revise our machine according to the customer’s convenience and high production efficiency.
1. As a professional Automation machine manufacturer and supplier, RUIHUI will supply the all machine with training video and user’s manual in English for installation, operation, maintenance, and trouble-shooting, and shall give technical guides by remote, such as TeamViewer, E-mail, Telephone, Mobile, Whatsapp, Skype, 24/7 online chat, and so on, when you meet some problems of installation, operation or adjusting.
2. You can come to our factory for training. We will offer professional guidance and direct and effective face-to-face training. Here we have assembled equipment, all sorts of tools, and a testing facility. Training Time: 3~5 days.
3. Our engineer will do a door-to-door instruction training service at your local site. We need your help to deal with the visa formality, prepaid traveling expenses, and accommodation to us during the business trip and service period before their dispatch.
As a top Automation Machine brand in the world, RUIHUI promise:
1. 1 year for the whole Ruihui machine free warranty.
2. Long life-time maintenance, the after-sale department will offer 24/7 English online support.
3. We provide machine-related parts service
4. After the warranty period expired, the Ruihui buyer only needs to pay the actual maintenance cost.
5. Certificate support:
All the machines can be shipped worldwide by sea, air, or express logistics via DHL, FedEx, and UPS. You are welcome to get a free quotation by filling up the form with your name, email, detailed address, product, and requirements, we will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.
