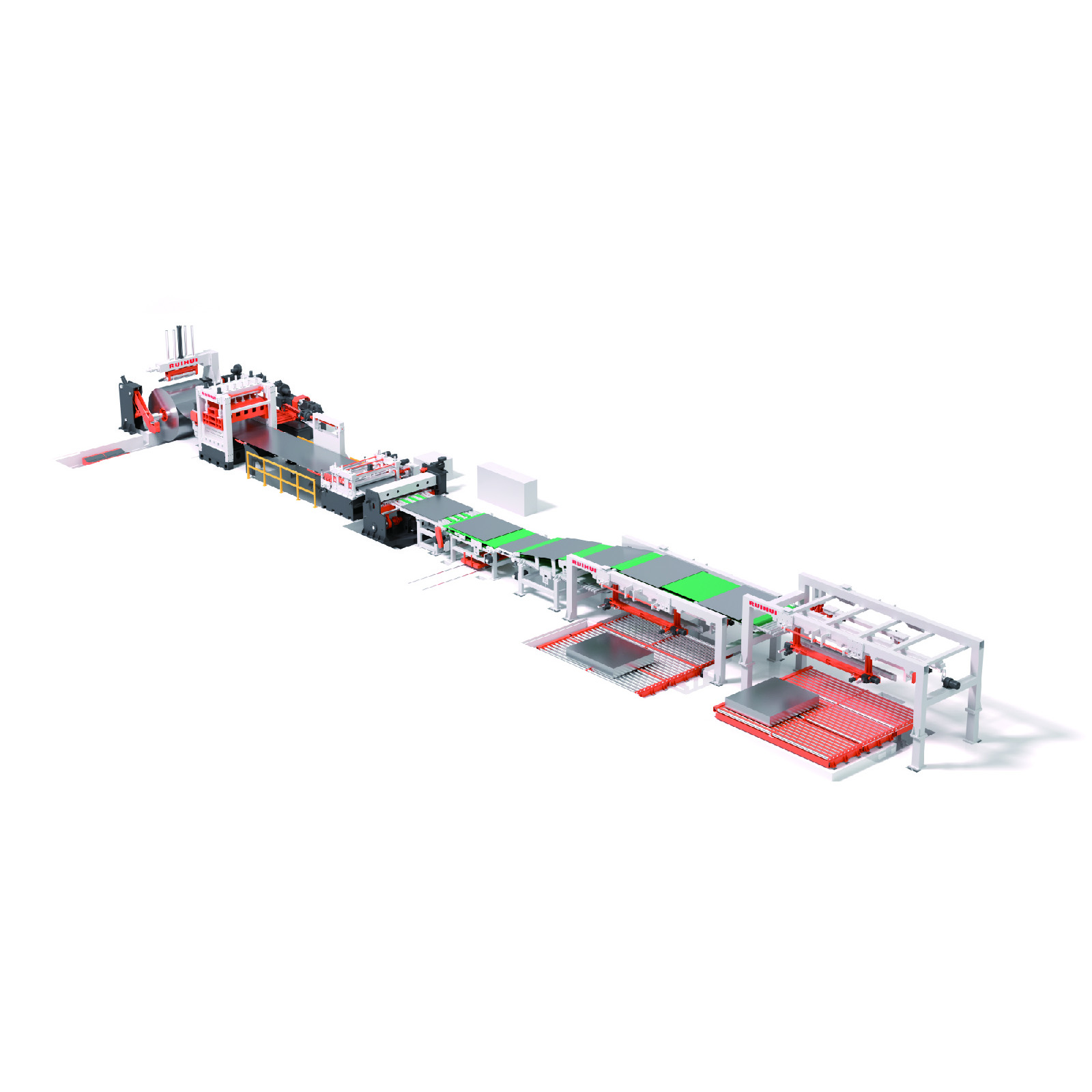

This production line is equipped with precision leveling and servo-tracking shear functions to ensure that the finished products have accurate dimensions and flat surfaces. It is used to cut the fixed length of the plate measured by the NC sizing machine. The shearing machine can move forward and backward, and the moving distance is 1000mm. The shearing speed is fast, which can significantly improves production efficiency. When cutting plates of different thicknesses, the gap between the shear blades can be adjusted manually.
Machine Name | Cut to Length Production Line |
Coil weight | MAX 25T |
Material width | MAX 2000mm |
Material thickness | 0.4~4mm |
Shear line speed | 0~120m/min(Infinitely adjustable speed) |
Belt speed | 0~15m/min |
Number of cut pieces | 1500m/hour 2.0mm≤20piece/min |
Shear accuracy | ±0.5mm |
Shear burr | ≦Material thicknessx3% |
Shear straightness | ≤0.1mm |
Swing angle | ±35° |
Oscillation accuracy | ±3′ |
Raw coils | SPCC,SGCC,HDP… |
Average capacity | 50000T/Y |
1. Strong water resit bottom in plywood.
2. Corner protect by foam and fixed by a protective film.
3. All covered by a strong and hard protective film.
4. Inside steel frame protector.
5. Plywood packing and steel strip outside fixed the box.
6. Finishing packing by normal container or frame container.
1. Equipment model selection, provide the technical parameters of the relevant equipment.
2. Progressing Solution Design: According to the customer’s product processing requirement, we can design a unique solution that supports higher manufacturing efficiency and better processing quality for the customer.
3. Customized Machine Design: According to the customer’s application, we may revise our machine according to the customer’s convenience and high production efficiency.
1. As a professional Automation machine manufacturer and supplier, RUIHUI will supply the all machine with training video and user’s manual in English for installation, operation, maintenance, and trouble-shooting, and shall give technical guides by remote, such as TeamViewer, E-mail, Telephone, Mobile, Whatsapp, Skype, 24/7 online chat, and so on, when you meet some problems of installation, operation or adjusting.
2. You can come to our factory for training. We will offer professional guidance and direct and effective face-to-face training. Here we have assembled equipment, all sorts of tools, and a testing facility. Training Time: 3~5 days.
3. Our engineer will do a door-to-door instruction training service at your local site. We need your help to deal with the visa formality, prepaid traveling expenses, and accommodation to us during the business trip and service period before their dispatch.
As a top Automation Machine brand in the world, RUIHUI promise:
1. 1 year for the whole Ruihui machine free warranty.
2. Long life-time maintenance, the after-sale department will offer 24/7 English online support.
3. We provide machine-related parts service
4. After the warranty period expired, the Ruihui buyer only needs to pay the actual maintenance cost.
5. Certificate support:
All the machines can be shipped worldwide by sea, air, or express logistics via DHL, FedEx, and UPS. You are welcome to get a free quotation by filling up the form with your name, email, detailed address, product, and requirements, we will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.
